Yashima YT-138 (Japan 902)

Yashima YT-138 ; Yashima Electric (ID = 1368346) Radio Yashima YT-138 ; Yashima Electric (ID = 1368347) Radio

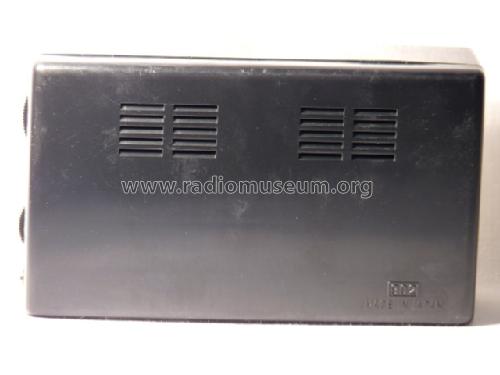

Yashima YT-138 ; Yashima Electric (ID = 1368348) Radio Yashima YT-138 ; Yashima Electric (ID = 1368349) Radio
Yashima YT-138 ; Yashima Electric (ID = 1368350) Radio
Use red slider bar for more.
Yashima YT-138 ; Yashima Electric (ID = 1368346) Radio
Yashima Electric: Yashima YT-138 [Radio] ID = 1368346 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Yashima YT-138 (Japan 902), Yashima Electric Industrial Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yashima Electric Industrial Co., Ltd.; Tokyo
Year: 1966 ? Category: Broadcast Receiver - or past WW2 Tuner

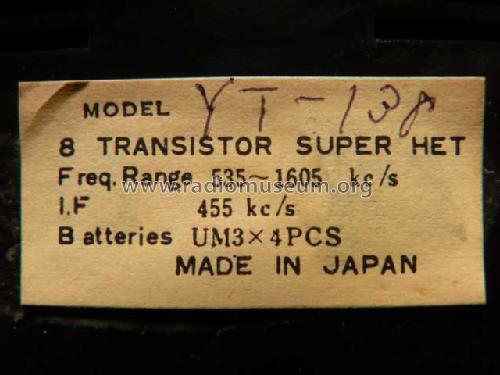

Semiconductors (the count is only for transistors) 8: 2SA142 2SA141 2SA141 2SA141 2SB135 2SB135 2SB136 2SB136
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Yashima YT-138 - Yashima Electric Industrial Co
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 137 x 80 x 38 mm / 5.4 x 3.1 x 1.5 inch
Notes

Similar models listed here

Made in Japan 902

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Boris Witke. See "Data change" for further contributors.
