Junhao 军号 J601A
Yunnan 云南无线电厂 Yunnan Radio Factory; Kunming
- Country
- People's Republic of China
- Manufacturer / Brand
- Yunnan 云南无线电厂 Yunnan Radio Factory; Kunming
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176017
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Junhao 军号 J601A - Yunnan 云南无线电厂 Yunnan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 195 x 111 x 46 mm / 7.7 x 4.4 x 1.8 inch
- Notes
- The model Junhao 军号 J601A has broadcast only.
- Literature/Schematics (1)

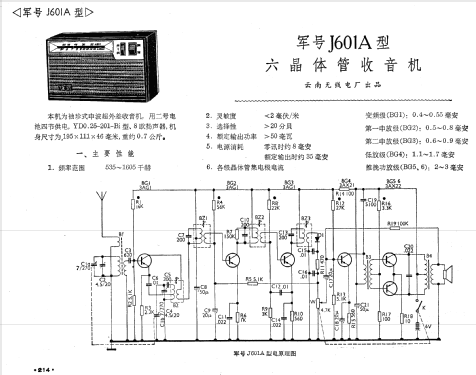

- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 214.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
