Daria RM803S

Daria RM803S; Unitra ZRK, Zaklady (ID = 1726328) Radio Daria RM803S; Unitra ZRK, Zaklady (ID = 1726329) Radio
Daria RM803S; Unitra ZRK, Zaklady (ID = 1726330) Radio Daria RM803S; Unitra ZRK, Zaklady (ID = 1726355) Radio
Daria RM803S; Unitra ZRK, Zaklady (ID = 1726357) Radio Daria RM803S; Unitra ZRK, Zaklady (ID = 1726358) Radio
Daria RM803S; Unitra ZRK, Zaklady (ID = 1726360) Radio Daria RM803S; Unitra ZRK, Zaklady (ID = 1726363) Radio
Daria RM803S; Unitra ZRK, Zaklady (ID = 1726365) Radio Daria RM803S; Unitra ZRK, Zaklady (ID = 1726369) Radio
Use red slider bar for more.

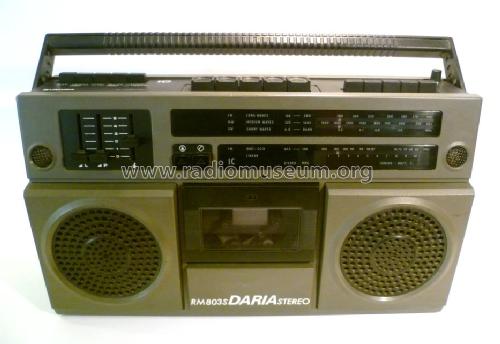

Daria RM803S; Unitra ZRK, Zaklady (ID = 1726328) Radio
Unitra ZRK, Zaklady: Daria RM803S [Radio] ID = 1726328 933x642
Select picture or schematic to display from thumbnails on the right and click for download.
For model Daria RM803S, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka:
Thanks for Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1980 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Daria RM803S - Unitra ZRK, Zaklady Radiowe im
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 375 x 101 x 197 mm / 14.8 x 4 x 7.8 inch
Notes UKW: OIRT Band, 2 eingebaute Mikrofone, Ausgangsleistung 2 x 3,5 Watt.
Optisch ähnlich dem Tesla Diamant K203.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Here you find 212 models, 181 with images and 86 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
