Irys

Irys ; Unitra ZRK, Zaklady (ID = 2375196) Radio Irys ; Unitra ZRK, Zaklady (ID = 2375197) Radio
Irys ; Unitra ZRK, Zaklady (ID = 1820200) Radio Irys ; Unitra ZRK, Zaklady (ID = 310524) Radio
Irys ; Unitra ZRK, Zaklady (ID = 310525) Radio Irys ; Unitra ZRK, Zaklady (ID = 310526) Radio
Irys ; Unitra ZRK, Zaklady (ID = 2233392) Radio Irys ; Unitra ZRK, Zaklady (ID = 2233395) Radio
Irys ; Unitra ZRK, Zaklady (ID = 2233396) Radio Irys ; Unitra ZRK, Zaklady (ID = 2233398) Radio
Use red slider bar for more.
Irys ; Unitra ZRK, Zaklady (ID = 2375196) Radio
Unitra ZRK, Zaklady: Irys [Radio] ID = 2375196 1400x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model Irys, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka:

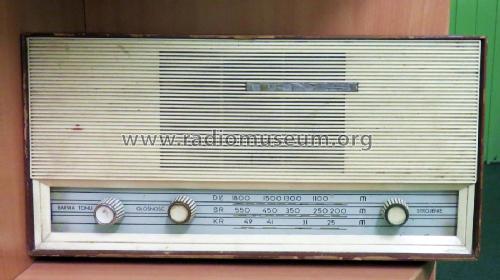

This is the front of an IRYS Radio I obtained recently. It is good condition but not tested as yet.

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 EBF89 ECL82
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Irys - Unitra ZRK, Zaklady Radiowe im
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 382 x 135 x 190 mm / 15 x 5.3 x 7.5 inch
Notes

KW band 25 - 49 m
Rectifier SPS6B

Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Price in first year of sale 1'200.00 PLZ
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Here you find 212 models, 180 with images and 86 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
