M2405S 26 Transistoren

M2405S; Unitra ZRK, Zaklady (ID = 1435420) R-Player

M2405S; Unitra ZRK, Zaklady (ID = 1435421) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 181496) R-Player M2405S; Unitra ZRK, Zaklady (ID = 181497) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 181498) R-Player M2405S; Unitra ZRK, Zaklady (ID = 181499) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 405302) R-Player M2405S; Unitra ZRK, Zaklady (ID = 1397650) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 1457640) R-Player M2405S; Unitra ZRK, Zaklady (ID = 1457641) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 1671115) R-Player
Use red slider bar for more.
M2405S; Unitra ZRK, Zaklady (ID = 181496) R-Player
Unitra ZRK, Zaklady: M2405S [R-Player] ID = 181496 450x338

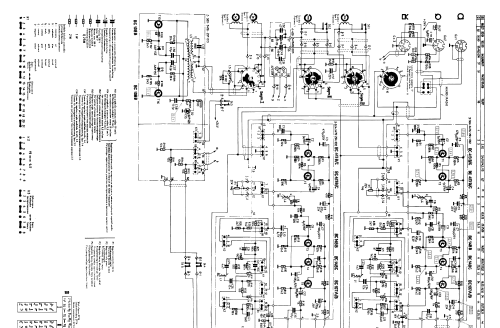

Select picture or schematic to display from thumbnails on the right and click for download.
For model M2405S 26 Transistoren, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka:
Version für den tschechischen Markt mir 2x4 Watt !

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1976 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 26: BC413 BC413 BC148 BC148 BC107 BC413 BC413 BC148 BC148 BC107 BC108 BC108 BC237 BC237 BC147 BC177 BC177 BD254 BD254 BC237 BC237 BC147 BC177 BC177 BD254 BD254
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (undistorted)
from Radiomuseum.org Model: M2405S [26 Transistoren] - Unitra ZRK, Zaklady Radiowe im
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 170 x 340 mm / 17.3 x 6.7 x 13.4 inch
Notes Stereotonbandgerät. 2 Bandgeschwindigkeiten: 9,53 und 19,05 cm/s.
Ausgangsleistung 2 x 4 Watt.
Anschluß externe Lautsprecher, 40...18500 Hz bei 19,05 cm/s. Transistorendstufe mit BDP254
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 5'370.00 CZK
Collectors' prices
Source of data -- Original prospect or advert

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Here you find 211 models, 179 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
