M2405S 3

M2405S; Unitra ZRK, Zaklady (ID = 1435572) R-Player

M2405S; Unitra ZRK, Zaklady (ID = 1435573) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 963274) R-Player M2405S; Unitra ZRK, Zaklady (ID = 1397148) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 1457642) R-Player M2405S; Unitra ZRK, Zaklady (ID = 1457643) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 1669256) R-Player M2405S; Unitra ZRK, Zaklady (ID = 1669257) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 1669259) R-Player M2405S; Unitra ZRK, Zaklady (ID = 2146840) R-Player
M2405S; Unitra ZRK, Zaklady (ID = 2146841) R-Player M2405S; Unitra ZRK, Zaklady (ID = 2146842) R-Player
Use red slider bar for more.

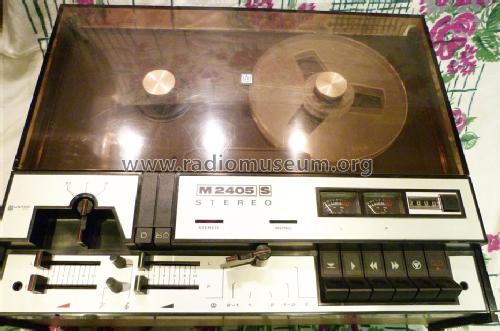

M2405S; Unitra ZRK, Zaklady (ID = 963274) R-Player
Unitra ZRK, Zaklady: M2405S [R-Player] ID = 963274 850x637

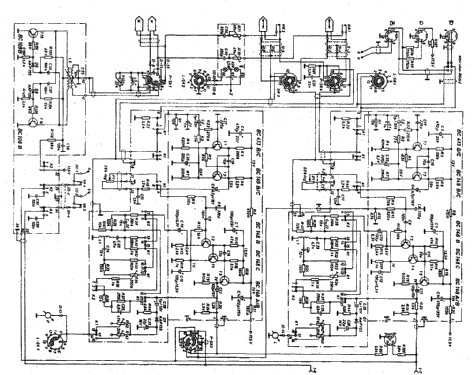

Select picture or schematic to display from thumbnails on the right and click for download.
For model M2405S 3, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka:
letzte Version des Gerätes, dem 'Trend' angepasst, Frontgestaltung schwarze Plaste, weiße Schrift-

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1980 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 15: BC413 BC149 BC148 BC148 BC148 BC413 BC149 BC148 BC148 BC148 BC108 BC108 BC313 BC147 BD355 UL1481 UL1481
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (undistorted)
from Radiomuseum.org Model: M2405S [3] - Unitra ZRK, Zaklady Radiowe im
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 350 x 150 mm / 17.7 x 13.8 x 5.9 inch
Notes Aussteuerungsanzeige durch 2 einzelne Instrumente, Endstufe mit TBA810AS bzw UL1481.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Here you find 212 models, 181 with images and 86 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
