• Country
• Poland

• Manufacturer / Brand
• Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107157

• • Brand: Unitra

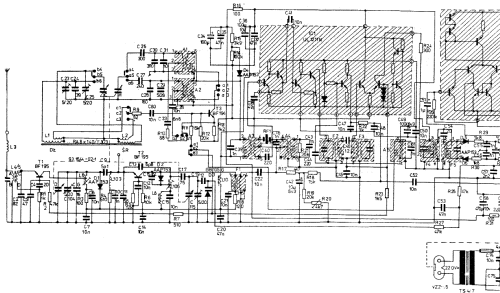

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF195 BF195 BF194 BC338 BC149 BC149 BC156 BC148 BC148 UL1211 UL1498

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / (5 x 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.7 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Marta RM-405 - Unitra ZRK, Zaklady Radiowe im

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Der Radiorecorder Marta RM-405 empfängt FM nach OIRT (65,5 - 73 MHz) und hat ein eingebautes Mikrofon. Anschlüsse für einen Kopfhörer und TA/ TB. 2 ICs, UL1211N und UL1498R.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
