Unitra Tonsil MDU24 - Art.Nr. 503510
Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Country
- Poland
- Manufacturer / Brand
- Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Year
- 1985 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 145045
-
- Brand: Unitra
Katalogabbildung
Orig. Anleitung
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Unitra Tonsil MDU24 - Art.Nr. 503510 - Unitra ZRK, Zaklady Radiowe im
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 56 x 39 x 51 mm / 2.2 x 1.5 x 2 inch
- Notes
-

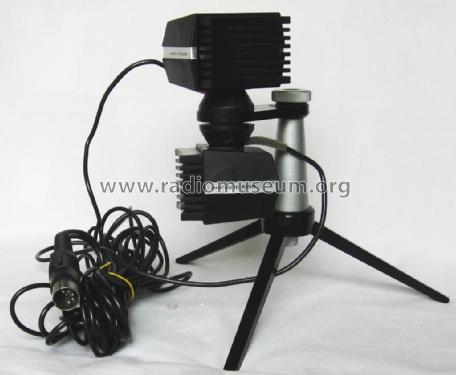

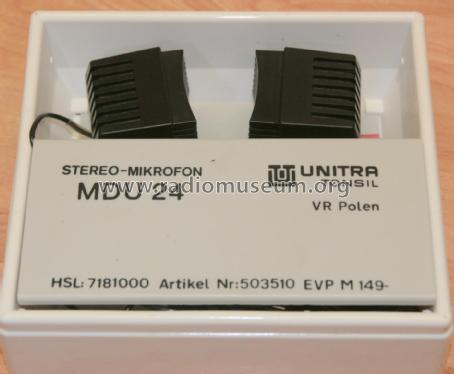

Unitra Tonsil MDU 24;
Dynamisches Stereo-Mikrofon, Würfelform, 70 - 15.000 Hz, 2,8 mV/Pa, kardioidal Charakteristik, 700 Ohm Imp., 400 g, Lieferung mit Tischstativ, 3 m Anschlußkabel mit DIN Stecker. Deutsche Beschreibung bekannt (offensichtlich für den Export in die DDR).Abmessungen für ein Mikrofon, ohne Stativ.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Price in first year of sale
- 149.00 Mark
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Sortimentskatalog Elektroakustik (DDR, 1987)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
