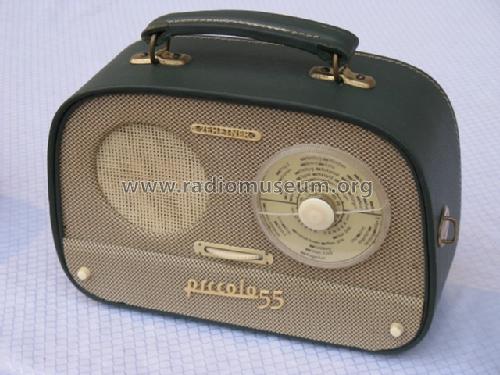

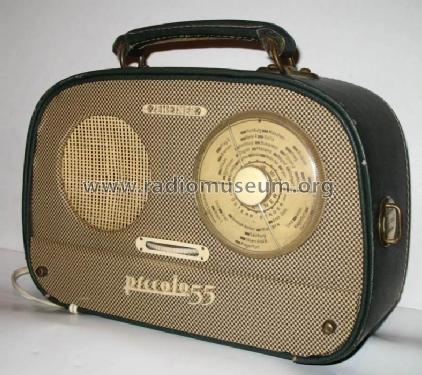

Piccolo 55

Piccolo 55 ; Zehetner Radiobau- (ID = 57278) Radio
Piccolo 55 ; Zehetner Radiobau- (ID = 2554485) Radio Piccolo 55 ; Zehetner Radiobau- (ID = 2554484) Radio
Piccolo 55 ; Zehetner Radiobau- (ID = 1922828) Radio Piccolo 55 ; Zehetner Radiobau- (ID = 1922829) Radio
Piccolo 55 ; Zehetner Radiobau- (ID = 64259) Radio Piccolo 55 ; Zehetner Radiobau- (ID = 64258) Radio
Piccolo 55 ; Zehetner Radiobau- (ID = 694053) Radio Piccolo 55 ; Zehetner Radiobau- (ID = 694055) Radio
Piccolo 55 ; Zehetner Radiobau- (ID = 694052) Radio Piccolo 55 ; Zehetner Radiobau- (ID = 440430) Radio
Use red slider bar for more.
Piccolo 55 ; Zehetner Radiobau- (ID = 2554485) Radio
Zehetner Radiobau-: Piccolo 55 [Radio] ID = 2554485 1097x866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Piccolo 55, Zehetner (Radiobau-Zehetner); Wien

Country:  Austria
Manufacturer / Brand:  Zehetner (Radiobau-Zehetner); Wien
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 459 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Piccolo 55 - Zehetner Radiobau-Zehetner;
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 180 x 120 mm / 10.6 x 7.1 x 4.7 inch

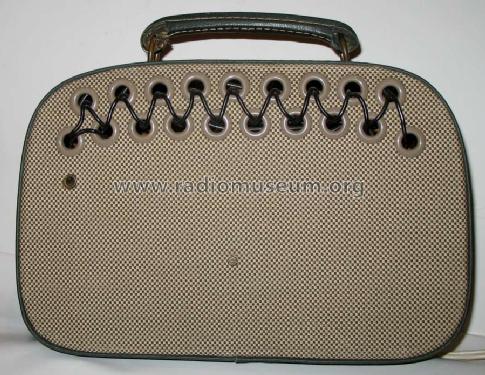

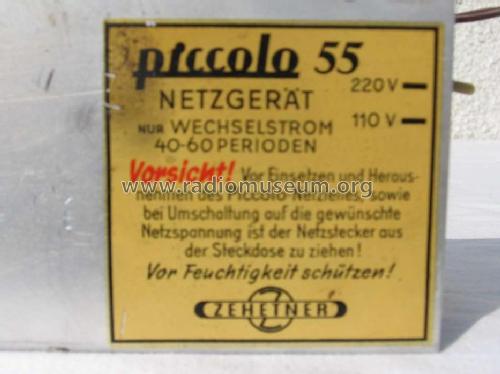

Notes Bruchsicheres Gehäuse mit abnehmbaren Frontdeckel; Piccolo-Netzgerät für Wechselstrom verwendbar = sep. Netzgerät (500 g)
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 890.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in RADIOBOTE, Österr. (Heft 65/2016, S.16 ff, Gerätebeschreibung)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Zehetner (Radiobau-Zehetner); Wien
Here you find 67 models, 42 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
