Zimmerantenne AA145
Zehnder GmbH; Tennenbronn/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Zehnder GmbH; Tennenbronn/Schwarzwald
- Year
- 1990 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 300156
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Zimmerantenne AA145 - Zehnder GmbH; Tennenbronn/
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 129 x 1095 x 108 mm / 5.1 x 43.1 x 4.3 inch
- Notes
-

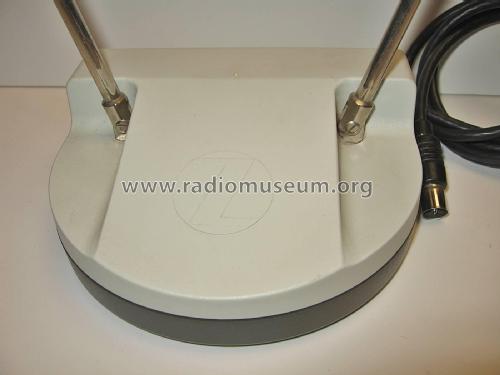

Passive Zimmerantenne mit zwei dreh- und schwenkbaren Teleskopstäben.
Empfangsbereich: 47...862 MHz (Band I, II, III, IV und V).
Teleskoplänge zwischen 340 mm bis 1065 mm einstellbar.
Eingebautes Anpassglied auf 75-Ω-Ausgang.
Koaxiale Anschlussleitung 1,25 m mit IEC-Stecker.
Wandmontage möglich.
Made in Germany.
- Net weight (2.2 lb = 1 kg)
- 0.332 kg / 0 lb 11.7 oz (0.731 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
