N-200

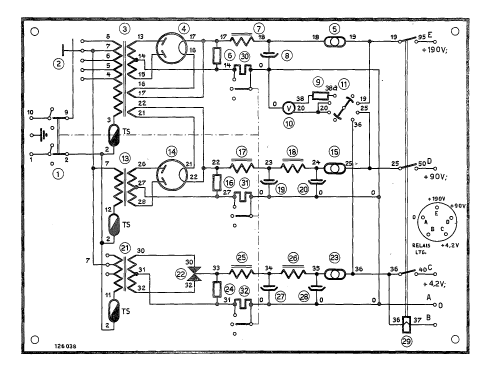

N-200; Zellweger AG; Uster (ID = 1284441) Power-S
N-200; Zellweger AG; Uster (ID = 1283124) Power-S N-200; Zellweger AG; Uster (ID = 1283125) Power-S
N-200; Zellweger AG; Uster (ID = 1283126) Power-S N-200; Zellweger AG; Uster (ID = 1283127) Power-S
N-200; Zellweger AG; Uster (ID = 1283128) Power-S
Use red slider bar for more.
N-200; Zellweger AG; Uster (ID = 1283124) Power-S
Zellweger AG; Uster: N-200 [Power-S] ID = 1283124 695x930
Select picture or schematic to display from thumbnails on the right and click for download.
For model N-200, Zellweger AG; Uster

Country:  Switzerland
Manufacturer / Brand:  Zellweger AG; Uster
Year: 1953/1954 Category: Power supply/conditioner or battery or charger
Valves / Tubes 2: AX50 AX50
Wave bands - without
Details Power Supply (not only Batt.El.)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: N-200 - Zellweger AG; Uster
Material Wooden case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 350 x 450 x 230 mm / 13.8 x 17.7 x 9.1 inch
Notes Das Netzgerät N-200 dient zur betriebsmässigen Speisung des Funkgerätes SE-200 vom selben Hersteller. Heizspannung 4.2 Volt, 1.6 Amp., Anodenspannung I 95 Volt, 60 mAmp., Anodenspannung II 190 Volt, 60 mAmp.
Net weight (2.2 lb = 1 kg) 30.7 kg / 67 lb 9.9 oz (67.621 lb)
Source of data -- Original-techn. papers.

Model page created by Anton Gämperle. See "Data change" for further contributors.
