10; Zenith Radio Corp.; (ID = 866454) Radio

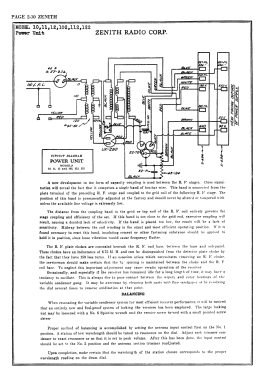

Zenith Radio Corp.;: 10 [Radio] ID = 866454 523x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10, Zenith Radio Corp.; Chicago, IL:
Zenith model 10 with courtesy from Lewis Warner.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 24 27 45 45 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 10 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Pre-War Consoles
