For model 102, Zenith Radio Corp.; Chicago, IL:

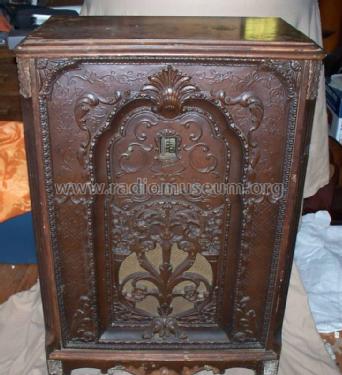

Zenith_Model_102. Image shows model 12. Model 112 use the same cabinet.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 24 27 45 45 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 102 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes for 25cycle mains
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
