For model 103 Ultra Ch= 2017 highboy, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 51 51 24 27 51 51 27 27 27 45 45 24 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 10 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)

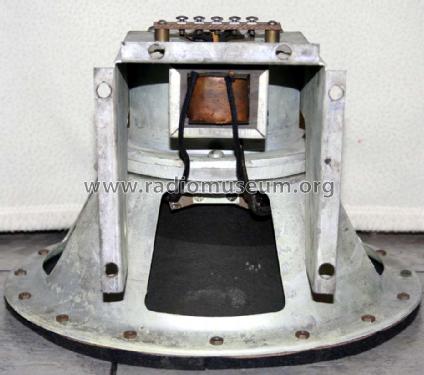

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: 103 Ultra Ch= 2017 [highboy] - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 28.75 x 51 x 17.25 inch / 730 x 1295 x 438 mm
Notes 6-legged stretcher base; ballast tube; signal strength meter; automatic tuning;
Price in first year of sale 290.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Zenith Radio The Early Years 1919-1935
Literature/Schematics (2) Pre-War Consoles
