10S549 10-S-549 Ch=10A1

10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 64124) Radio
10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 58169) Radio 10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 194407) Radio
10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 219616) Radio 10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 219618) Radio
10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 1918105) Radio
Use red slider bar for more.
10S549 10-S-549 Ch=10A1; Zenith Radio Corp.; (ID = 58169) Radio

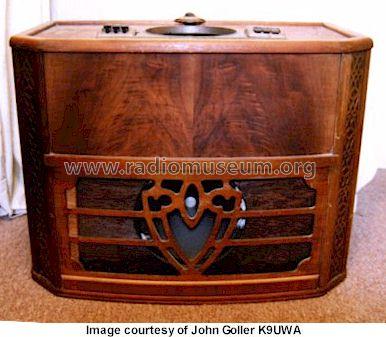

Zenith Radio Corp.;: 10S549 10-S-549 Ch=10A1 [Radio] ID = 58169 386x337
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10S549 10-S-549 Ch=10A1, Zenith Radio Corp.; Chicago, IL:
Copy gen. von John Goller Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 1232 6A8G 6K7G 6J5G 6F5G 6J5G 6V6G 6V6G 6X5G 6X5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 10S549 10-S-549 Ch=10A1 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 15.8 x 21 x 26.3 inch / 401 x 533 x 668 mm
Notes Pushbuttons
Price in first year of sale 85.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
