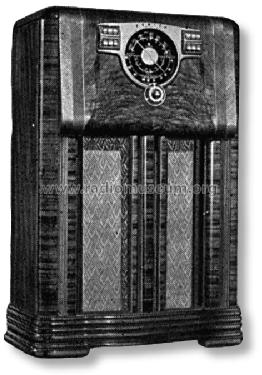

10S566 10-S-566 Ch=10A1

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 67283
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 10S566 10-S-566 Ch=10A1 - Zenith Radio Corp.; Chicago,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 28.5 x 21.5 x 14.3 inch / 724 x 546 x 363 mm
  • Price in first year of sale
  • 90.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
