112

112; Zenith Radio Corp.; (ID = 74078) Radio

112; Zenith Radio Corp.; (ID = 326723) Radio

112; Zenith Radio Corp.; (ID = 326725) Radio

112; Zenith Radio Corp.; (ID = 326726) Radio
112; Zenith Radio Corp.; (ID = 897691) Radio 112; Zenith Radio Corp.; (ID = 246586) Radio
Use red slider bar for more.
112; Zenith Radio Corp.; (ID = 897691) Radio
Zenith Radio Corp.;: 112 [Radio] ID = 897691 568x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 112, Zenith Radio Corp.; Chicago, IL:

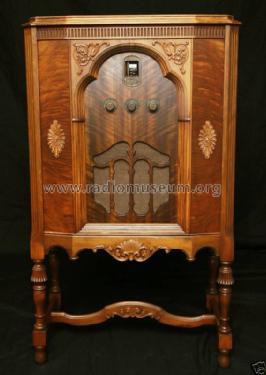

Zenith_Model_112. Image shows model 11. Model 112 use the same cabinet. Copy from Ebay seller _fix_it1.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 24 27 45 45 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 112 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes for 25cycle mains
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Pre-War Consoles


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4278 models, 3897 with images and 3389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
