11 highboy; Zenith Radio Corp.; (ID = 897646) Radio
Zenith Radio Corp.;: 11 highboy [Radio] ID = 897646 568x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 11 highboy, Zenith Radio Corp.; Chicago, IL:
Zenith_model_11_copy from Ebay seller fix_it1.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 24 27 45 45 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt

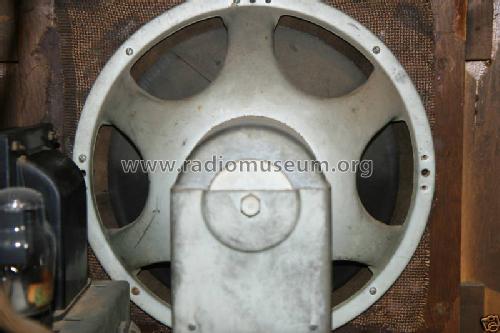

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 11 highboy - Zenith Radio Corp.; Chicago,

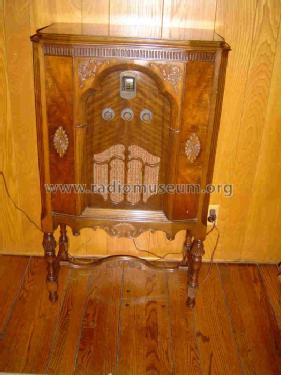

Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes 4 legged highboy with stretcher base.
External source of data Ernst Erb

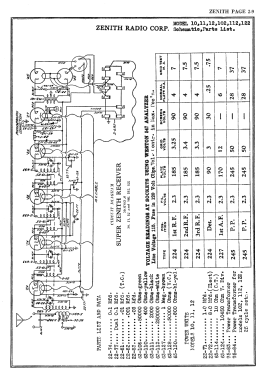

Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Pre-War Consoles


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
