11E ; Zenith Radio Corp.; (ID = 129443) Radio
11E ; Zenith Radio Corp.; (ID = 2270712) Radio 11E ; Zenith Radio Corp.; (ID = 2270714) Radio
11E ; Zenith Radio Corp.; (ID = 2270716) Radio 11E ; Zenith Radio Corp.; (ID = 2270720) Radio
11E ; Zenith Radio Corp.; (ID = 2270718) Radio 11E ; Zenith Radio Corp.; (ID = 129363) Radio
11E ; Zenith Radio Corp.; (ID = 129368) Radio 11E ; Zenith Radio Corp.; (ID = 129365) Radio
11E ; Zenith Radio Corp.; (ID = 129367) Radio 11E ; Zenith Radio Corp.; (ID = 129369) Radio
Use red slider bar for more.
11E ; Zenith Radio Corp.; (ID = 2270712) Radio
Zenith Radio Corp.;: 11E [Radio] ID = 2270712 1400x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model 11E, Zenith Radio Corp.; Chicago, IL:

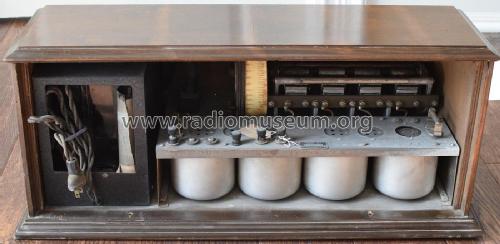

eBay item number:173365487274 The set pictured missing tubes was sold on eBay for $259.95 on 6/21/18.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 26 26 26 27 26 UX171 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 11E - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 24 x 10 x 12 inch / 610 x 254 x 305 mm
Notes same chassis in model #12E and #14E
Price in first year of sale 175.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
