122; Zenith Radio Corp.; (ID = 74076) Radio

122; Zenith Radio Corp.; (ID = 326728) Radio

122; Zenith Radio Corp.; (ID = 326729) Radio

122; Zenith Radio Corp.; (ID = 326730) Radio
122; Zenith Radio Corp.; (ID = 897696) Radio 122; Zenith Radio Corp.; (ID = 897695) Radio
122; Zenith Radio Corp.; (ID = 897693) Radio 122; Zenith Radio Corp.; (ID = 897692) Radio
122; Zenith Radio Corp.; (ID = 897694) Radio 122; Zenith Radio Corp.; (ID = 897697) Radio
122; Zenith Radio Corp.; (ID = 897698) Radio
Use red slider bar for more.
122; Zenith Radio Corp.; (ID = 897696) Radio
Zenith Radio Corp.;: 122 [Radio] ID = 897696 423x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 122, Zenith Radio Corp.; Chicago, IL:

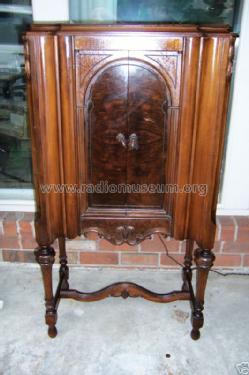

Zenith_Model_112_with courtesy by Ebay seller dainteriors.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 24 27 45 45 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 122 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes for 25cycle mains
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Pre-War Consoles


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
