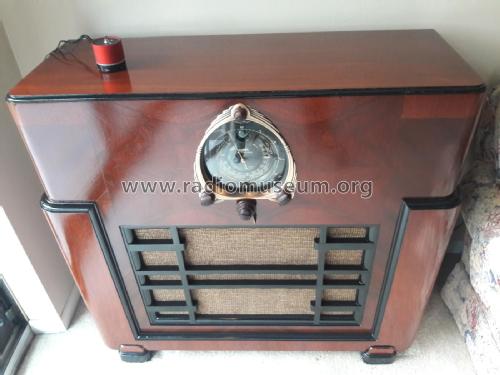

12-S-268 Ch=1204
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67329
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 15 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 12-S-268 Ch=1204 - Zenith Radio Corp.; Chicago,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 41.3 x 36 x 15.4 inch / 1049 x 914 x 391 mm
- Notes
- The schematic diagram got corrections (red). These lines are already missing in the Zenith drawing as well as in Riders and in Beitman.
- Price in first year of sale
- 160.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Zenith Radio The Glory Years 1936-1945
- Literature/Schematics (2)
- Pre-War Consoles
