12-S-374 Ch=1204
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74124
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

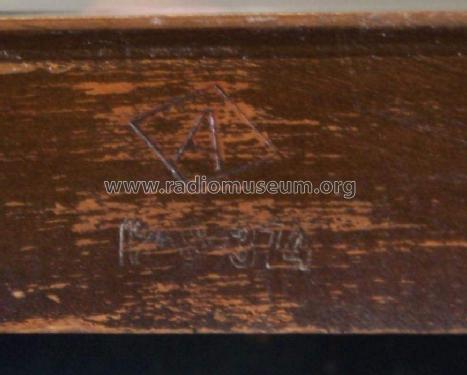

- Material
- Wooden case
- from Radiomuseum.org
- Model: 12-S-374 Ch=1204 - Zenith Radio Corp.; Chicago,
- Shape
- Console with Push Buttons.
- Notes
- The schematic diagram got corrections (red). These lines are already missing in the Zenith drawing as well as in Riders and in Beitman. Model produced ?
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Zenith Radio The Glory Years 1936-1945 (only the chassis 1204 is in Rider´s, not the model456)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
