For model 15U246 15-U-246 Ch=1501, Zenith Radio Corp.; Chicago, IL:
With courtesy by Great Nothern gn4radios

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: 6K7G 6L7G 6K7G 6J5G 6T5 6H6G 6J5G 6J5G 6J5G 6V6G 6V6G 6V6G 6V6G 5Y4G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 30 W (unknown quality)
from Radiomuseum.org Model: 15U246 15-U-246 Ch=1501 - Zenith Radio Corp.; Chicago,
Material Wooden case

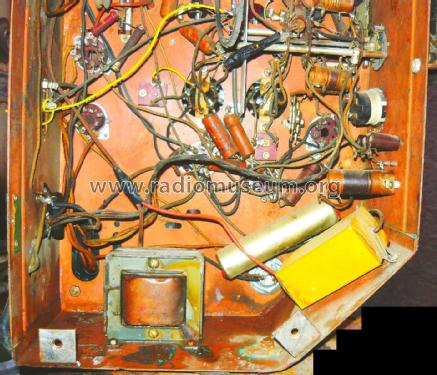

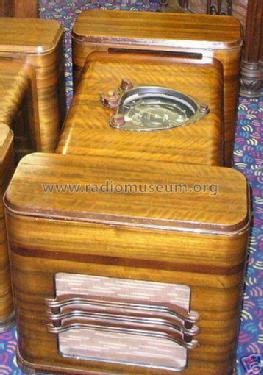

Shape Console: Chairside Radio.
Dimensions (WHD) 29.9 x 20 x 20.7 inch / 759 x 508 x 526 mm
Notes -
Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Price in first year of sale 185.00 $
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Zenith Radio The Glory Years 1936-1945
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (June 1937.)
