35

35 ; Zenith Radio Corp.; (ID = 60307) Radio
35 ; Zenith Radio Corp.; (ID = 1824566) Radio 35 ; Zenith Radio Corp.; (ID = 883244) Radio
35 ; Zenith Radio Corp.; (ID = 1824573) Radio 35 ; Zenith Radio Corp.; (ID = 1824575) Radio
35 ; Zenith Radio Corp.; (ID = 1824576) Radio
Use red slider bar for more.
35 ; Zenith Radio Corp.; (ID = 1824566) Radio
Zenith Radio Corp.;: 35 [Radio] ID = 1824566 800x535
Select picture or schematic to display from thumbnails on the right and click for download.
For model 35, Zenith Radio Corp.; Chicago, IL:
Zenith model 35 front view, doors open. Copy from Ebay seller gkolom.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 27 27 27 27 27 71A 81
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 35 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes One dial (primary tuning control knob)
Price in first year of sale 270.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

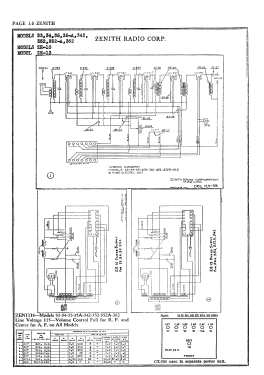

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
