35A

35A ; Zenith Radio Corp.; (ID = 60308) Radio
35A ; Zenith Radio Corp.; (ID = 1824578) Radio 35A ; Zenith Radio Corp.; (ID = 1824579) Radio

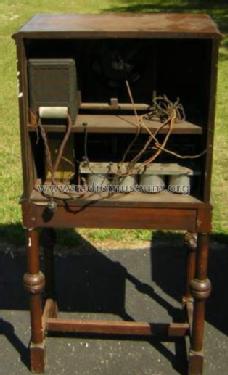

35A ; Zenith Radio Corp.; (ID = 1824581) Radio 35A ; Zenith Radio Corp.; (ID = 58467) Radio
Use red slider bar for more.
35A ; Zenith Radio Corp.; (ID = 1824578) Radio
Zenith Radio Corp.;: 35A [Radio] ID = 1824578 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 35A, Zenith Radio Corp.; Chicago, IL:
Zenith radio model 35A front view. Copy from Ebay seller enjoyingretirement50.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 27 27 27 27 27 UX171A 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 35A - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes Automatic tuner.
Price in first year of sale 325.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Radio Manufacturers of the 1920's, Vol. 3
