392

392; Zenith Radio Corp.; (ID = 219016) Radio
392; Zenith Radio Corp.; (ID = 156185) Radio
Use red slider bar for more.
392; Zenith Radio Corp.; (ID = 156185) Radio
Zenith Radio Corp.;: 392 [Radio] ID = 156185 800x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 392, Zenith Radio Corp.; Chicago, IL:
392 (1929) Ebay seller zj97

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 27 27 27 27 27 27 26 10 81 81
Main principle TRF without regeneration
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 392 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Single dial (primary tuning knob); 25cycle mains;

Price in first year of sale 450.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

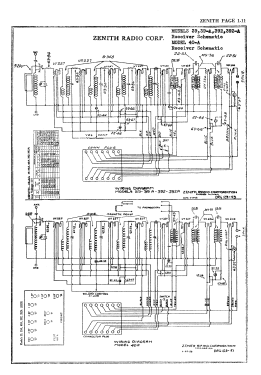

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Radio Manufacturers of the 1920's, Vol. 3
Literature/Schematics (1) Radio Set Socket Layout 1921 to 1935, RCA


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4278 models, 3897 with images and 3389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
