• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74294
    • alternative name: Chicago Radio Lab

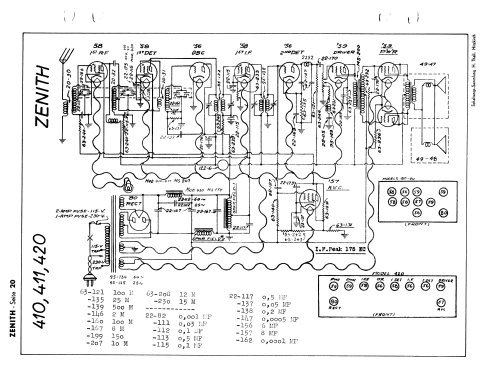

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115/230 Volt
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 412 Ch= 2030 - Zenith Radio Corp.; Chicago,
  • Notes
  • two speakers;
  • Circuit diagram reference
  • Rider's Perpetual, Volume 3 = 1933 and before
