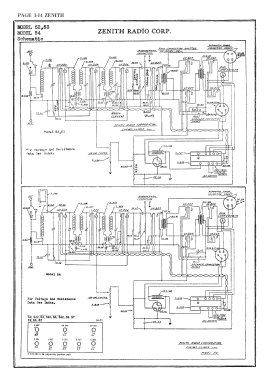

Select picture or schematic to display from thumbnails on the right and click for download.
For model 54 (542), Zenith Radio Corp.; Chicago, IL:

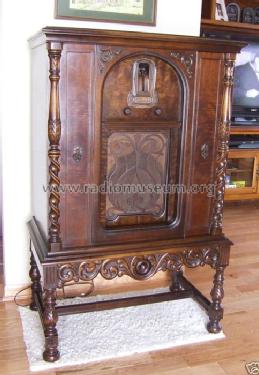

Zenith_54_with courtesy from Joe Formanek.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 24 24 24 27 27 27 45 45 80
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 54 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes One dial (primary tuning control knob) ; 542 is for 25cycle mains. See also same cabinet 77 of 1930 and similar chassis (also as 64).
Price in first year of sale 395.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
