• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241758

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 35L6GT 35Z5GT

• Number of Transistors

• Semiconductors
• 100-85

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 115; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10.5 cm = 4.1 inch

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

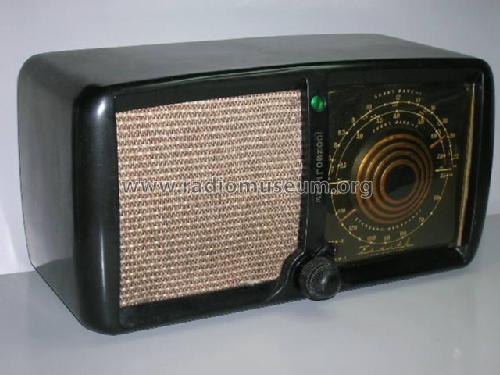

• Model: 5D012YT Consoltone Ch= 5C60T [black] - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 315 x 165 x 138 mm / 12.4 x 6.5 x 5.4 inch

• Notes

• Dial lamp: #47 (6,3V/0,15A).

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
