For model 5D811 The Tournament Ch= 5E01, Zenith Radio Corp.; Chicago, IL:
Restored electronically and cosmetically - Front

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50L6GT 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 5D811 The Tournament Ch= 5E01 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Choice of Black, Walnut or White plastic with Roman Gold accent.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before

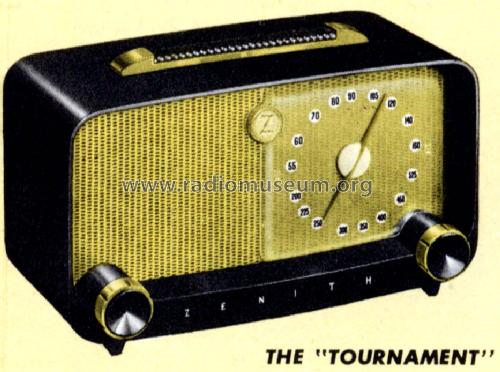

Literature/Schematics (3) -- Original prospect or advert (The Zenith Folder for 1948/1949 Form. R-8107)
