5R236 5-R-236 Ch=5526

5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 317925) Radio

5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 317926) Radio

5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 317927) Radio

5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 317928) Radio

5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 317929) Radio
5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 64315) Radio 5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 243819) Radio
5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 243820) Radio 5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 243821) Radio
5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 1002153) Radio 5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 1002154) Radio
5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 2237786) Radio 5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 2237789) Radio
5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 2237790) Radio
Use red slider bar for more.
5R236 5-R-236 Ch=5526; Zenith Radio Corp.; (ID = 64315) Radio
Zenith Radio Corp.;: 5R236 5-R-236 Ch=5526 [Radio] ID = 64315 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5R236 5-R-236 Ch=5526, Zenith Radio Corp.; Chicago, IL:

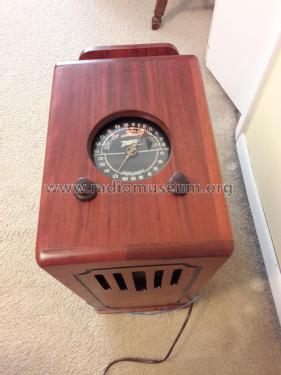

Zenith 5-R-236 (1937) Copy from Ebay

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6F6G 5Y4G
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 5R236 5-R-236 Ch=5526 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 21.5 x 21 x 10 inch / 546 x 533 x 254 mm
Notes small chairside with magazine rack;
Price in first year of sale 29.95 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (June 1937.)
