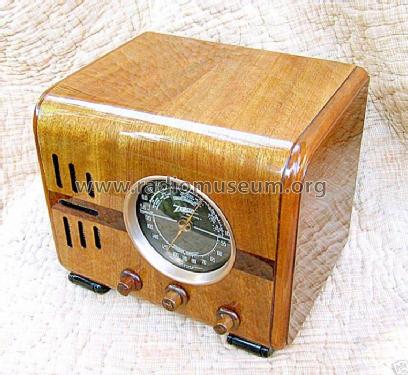

5S218 Ch= 5521; Zenith Radio Corp.; (ID = 342620) Radio
Zenith Radio Corp.;: 5S218 Ch= 5521 [Radio] ID = 342620 800x696
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5S218 Ch= 5521, Zenith Radio Corp.; Chicago, IL:
With courtesy by Ebayseller larry21751

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6F6G 5Y4G
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.25 inch = 10.8 cm
Power out
from Radiomuseum.org Model: 5S218 Ch= 5521 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 10.4 x 9 inch / 305 x 264 x 229 mm
Notes cube shaped w.feet;
Price in first year of sale 33.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 169.)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 282.)
