672

672; Zenith Radio Corp.; (ID = 98741) Radio
672; Zenith Radio Corp.; (ID = 2160535) Radio 672; Zenith Radio Corp.; (ID = 249056) Radio
Use red slider bar for more.
672; Zenith Radio Corp.; (ID = 2160535) Radio
Zenith Radio Corp.;: 672 [Radio] ID = 2160535 508x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model 672, Zenith Radio Corp.; Chicago, IL:

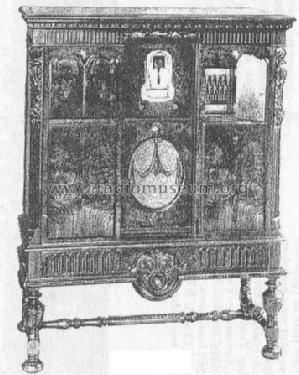

USA_Zenith_radio model 672. With courtesy from Antiques radio member radio2100. Image shows model 67. Model 672 use the same cabinet.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 24 24 24 27 27 27 45 45 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 672 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition
