6D238 Ch=5639

6D238 Ch=5639; Zenith Radio Corp.; (ID = 318015) Radio

6D238 Ch=5639; Zenith Radio Corp.; (ID = 318016) Radio

6D238 Ch=5639; Zenith Radio Corp.; (ID = 318017) Radio

6D238 Ch=5639; Zenith Radio Corp.; (ID = 318018) Radio

6D238 Ch=5639; Zenith Radio Corp.; (ID = 318020) Radio
6D238 Ch=5639; Zenith Radio Corp.; (ID = 267934) Radio
Use red slider bar for more.
6D238 Ch=5639; Zenith Radio Corp.; (ID = 267934) Radio
Zenith Radio Corp.;: 6D238 Ch=5639 [Radio] ID = 267934 241x312
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6D238 Ch=5639, Zenith Radio Corp.; Chicago, IL:

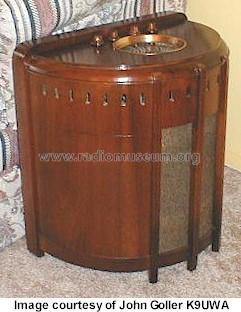

Image shows model 6-S-238. Model 6D-238 use probably the same cabinet with other dial and controls.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 25L6G 25Z6G
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 6D238 Ch=5639 - Zenith Radio Corp.; Chicago,
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
