6D2615 Ch=6B05

6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 265600) Radio
6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 2275525) Radio 6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 2275528) Radio
6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 2275526) Radio 6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 2275524) Radio
6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 91666) Radio 6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 91668) Radio
6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 91669) Radio 6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 820826) Radio
6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 820827) Radio 6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 820828) Radio
Use red slider bar for more.
6D2615 Ch=6B05; Zenith Radio Corp.; (ID = 2275525) Radio

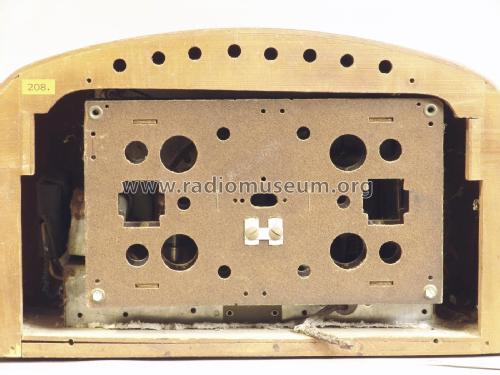

Zenith Radio Corp.;: 6D2615 Ch=6B05 [Radio] ID = 2275525 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6D2615 Ch=6B05, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 14C7 14Q7 14R7 14A7 35L6G 35Z5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 6D2615 Ch=6B05 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes wooden case substitute for 6D615 , same chassis.
Price in first year of sale 34.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 05, 1942
