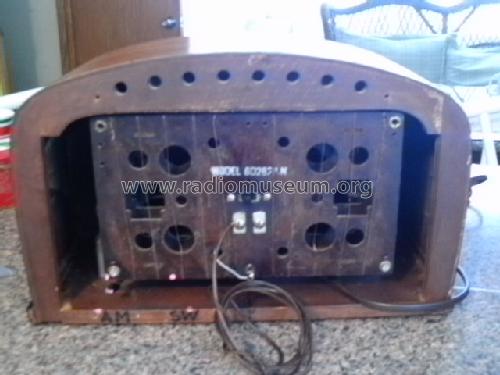

6D2620 6-D-2620 Ch= 6B14
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74180
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6D2620 6-D-2620 Ch= 6B14 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14.5 x 9 x 7 inch / 368 x 229 x 178 mm
- Notes
- wooden case substitute for 6D620;
- Price in first year of sale
- 32.00 $
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Zenith Radio The Glory Years 1936-1945
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
