For model 6D525 6-D-525 Ch=6A10, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12J7G 12SA7G 12K7GT 12SQ7GT 35L6G 35Z5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 6D525 6-D-525 Ch=6A10 - Zenith Radio Corp.; Chicago,

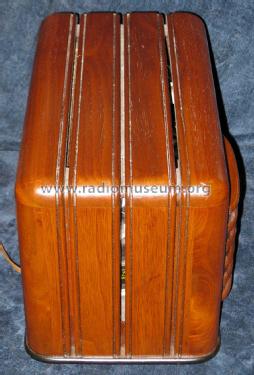

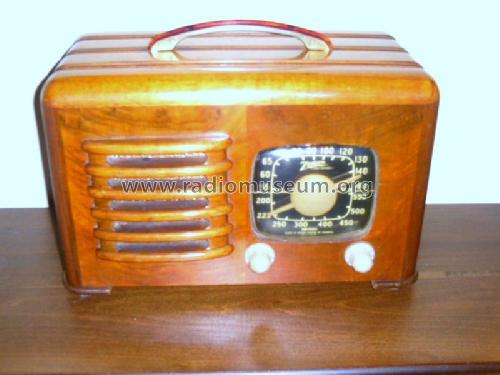

Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.1 x 7.4 x 6.9 inch / 307 x 188 x 175 mm
Notes

Ingraham cabinet.

Price in first year of sale 20.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 172.)
