6P447 Ch=5662/5666

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 67835
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 6P447 Ch=5662/5666 - Zenith Radio Corp.; Chicago,
  • Shape

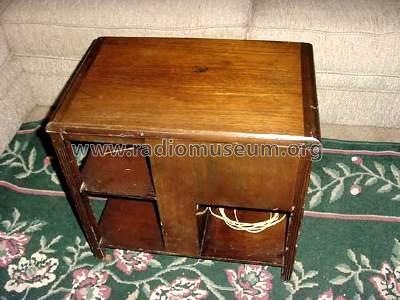

  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 13.5 x 21 x 21 inch / 343 x 533 x 533 mm
  • Notes
  • Pushbuttons
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 11 = ca. 1940 and before
