6S071AATZ Kombi Ch=5C61T

6S071AATZ Kombi Ch=5C61T; Zenith Radio Corp.; (ID = 20828) Radio
6S071AATZ Kombi Ch=5C61T; Zenith Radio Corp.; (ID = 2433379) Radio 6S071AATZ Kombi Ch=5C61T; Zenith Radio Corp.; (ID = 764494) Radio
6S071AATZ Kombi Ch=5C61T; Zenith Radio Corp.; (ID = 2431114) Radio 6S071AATZ Kombi Ch=5C61T; Zenith Radio Corp.; (ID = 392158) Radio
Use red slider bar for more.
6S071AATZ Kombi Ch=5C61T; Zenith Radio Corp.; (ID = 2433379) Radio

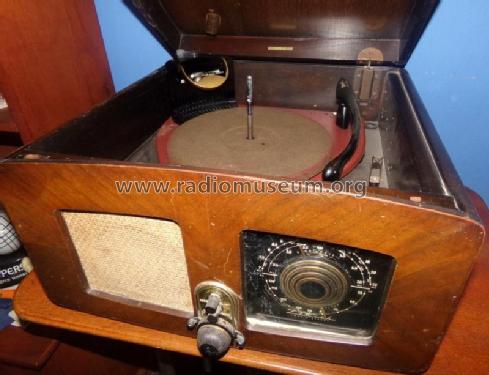

Zenith Radio Corp.;: 6S071AATZ Kombi Ch=5C61T [Radio] ID = 2433379 600x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6S071AATZ Kombi Ch=5C61T, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SA7GT 12SK7GT 7C6 7F7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 6S071AATZ Kombi Ch=5C61T - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes

similar to6S071T (see Riders 15/47)

External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
