For model 6S152 Ch=5634, Zenith Radio Corp.; Chicago, IL:
Zenith 6-S-152 front view

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7G 6H6G 6F5G 6F6G 5Y3
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 6S152 Ch=5634 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 24.8 x 40 x 12.4 inch / 630 x 1016 x 315 mm
Price in first year of sale 70.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

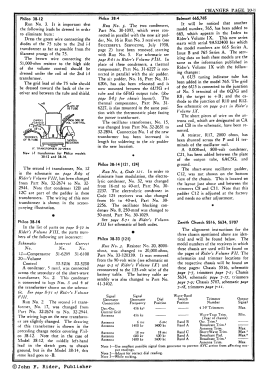

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4070 models, 3543 with images and 3225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
