6S275 6-S-275 Ch=5638
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72552
-
- alternative name: Chicago Radio Lab

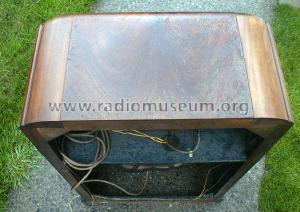

With courtesy from John James.
With courtesy from John James.
With courtesy from John James.
Copy from zenith flyer
With courtesy from John James.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6S275 6-S-275 Ch=5638 - Zenith Radio Corp.; Chicago,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 24 x 39 x 12.8 inch / 610 x 991 x 325 mm
- Price in first year of sale
- 70.00 $
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Zenith Radio The Glory Years 1936-1945
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
