6S306 6-S-306 Ch=565129.
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67879
-
- alternative name: Chicago Radio Lab
Copy from Zenith folder

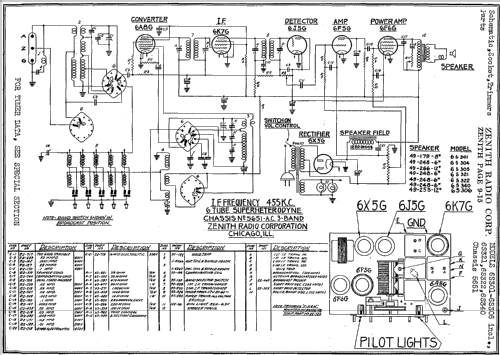

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6S306 6-S-306 Ch=565129. - Zenith Radio Corp.; Chicago,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 29.5 x 36.3 x 16.1 inch / 749 x 922 x 409 mm
- Notes
-
Record player is model 169-31
- Price in first year of sale
- 150.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Zenith Radio The Glory Years 1936-1945
