7200 Ch= 9L20 + 4L21 (4 L 21

7200 Ch= 9L20 + 4L21 (4 L 21; Zenith Radio Corp.; (ID = 155938) Radio

7200 Ch= 9L20 + 4L21 (4 L 21; Zenith Radio Corp.; (ID = 155939) Radio

7200 Ch= 9L20 + 4L21 (4 L 21; Zenith Radio Corp.; (ID = 155940) Radio
Use red slider bar for more.
7200 Ch= 9L20 + 4L21 (4 L 21; Zenith Radio Corp.; (ID = 155938) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6JK8 12BA6 12BA6 12AU6 6CG7 12BE6 12BA6 6EA8 6BN8
Main principle Superhet with RF-stage
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 7200 Ch= 9L20 + 4L21 (4 L 21 - Zenith Radio Corp.; Chicago,
Notes Chassis 9L20 used in Modells: ML2605, ML2606, ML2608, ML2610, ML2636, ML2785 and 7200. Chassis 9L20 is an AM/FM receiver with preamp. To the model belongs also a poweramp 5L29. Listed tubes refer only to the receiver. Tubes 4L21: 12AX7A 6BQ5 6BQ5 5Y3GT

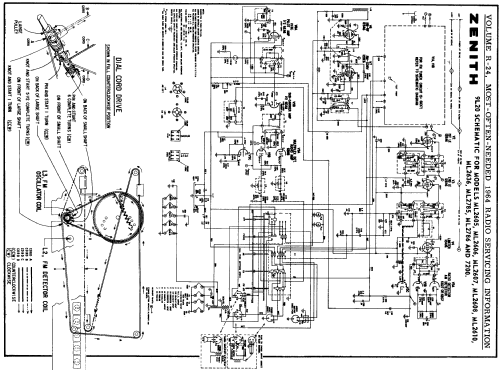

Circuit diagram reference Beitman Radio Diagrams Vol. 24, 1964

Model page created by Egon Penker. See "Data change" for further contributors.
