735 ; Zenith Radio Corp.; (ID = 720311) Radio
735 ; Zenith Radio Corp.; (ID = 245452) Radio
Use red slider bar for more.
735 ; Zenith Radio Corp.; (ID = 245452) Radio
Zenith Radio Corp.;: 735 [Radio] ID = 245452 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 735, Zenith Radio Corp.; Chicago, IL:

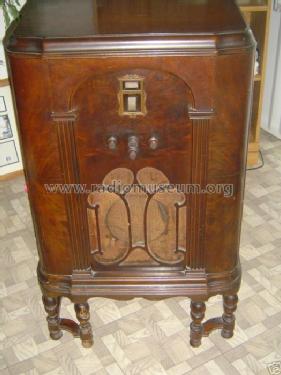

Image shows model 755 . Model 735 use the same cabinet. Dial bezel and knob positions are diiferent.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 32 30 34 34 19
Main principle Superheterodyne (common); ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 735 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
