78 ; Zenith Radio Corp.; (ID = 264439) Radio

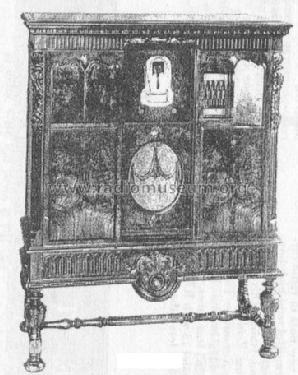

Zenith Radio Corp.;: 78 [Radio] ID = 264439 363x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model 78, Zenith Radio Corp.; Chicago, IL:
Copy from Zenith folder

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 24 24 24 27 27 27 45 45 80
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: 78 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes Power Pack ZE-70; electrical remote control;
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Zenith Radio The Early Years 1919-1935

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
