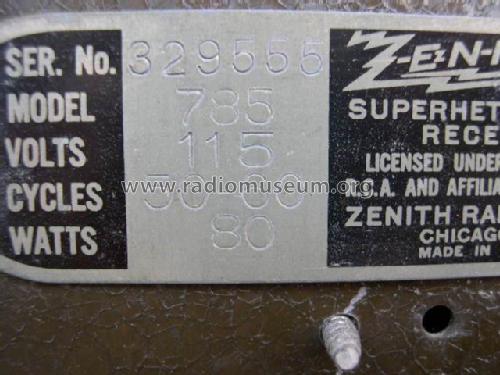

Zenith Radio Corp.;: 785 Ch= 2053 [Radio] ID = 1657621 273x418
Select picture or schematic to display from thumbnails on the right and click for download.
For model 785 Ch= 2053, Zenith Radio Corp.; Chicago, IL:
Zenith model 785 with courtesy by Mike Picariello Jr.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 58 56 58 58 55 59 59 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 785 Ch= 2053 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 22 x 39 x 13.5 inch / 559 x 991 x 343 mm
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Mentioned in Zenith Radio The Early Years 1919-1935 (Chassis in Rider´s)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
