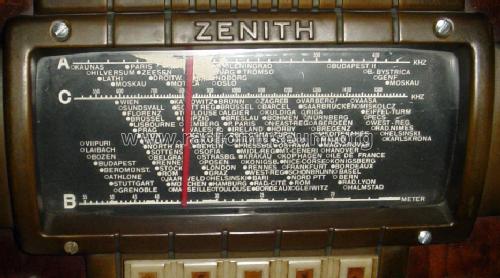

7A1427 5723AT Console

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 116189
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 30 cm = 11.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 7A1427 5723AT [Console] - Zenith Radio Corp.; Chicago,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 595 x 960 x 390 mm / 23.4 x 37.8 x 15.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 36.5 kg / 80 lb 6.3 oz (80.396 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Peter Steffen. See "Data change" for further contributors.
