7H820W Ch= 7E01; Zenith Radio Corp.; (ID = 1154401) Radio

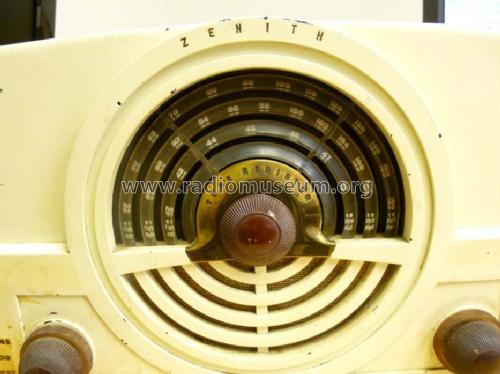

Zenith Radio Corp.;: 7H820W Ch= 7E01 [Radio] ID = 1154401 800x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7H820W Ch= 7E01, Zenith Radio Corp.; Chicago, IL:
USA_Zenith_7-H-820 with courtesy by Mr.Tardi

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12BA6 12BE6 12BA6 12BA6 12AU6 19T8 35B5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
Power out
from Radiomuseum.org Model: 7H820W Ch= 7E01 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 43, Date 8/48, Folder 4813-24)

Model page created by Ernst Erb. See "Data change" for further contributors.
