• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67969

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12BE6 12BA6 12BA6 12AU6 19T8 35B5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

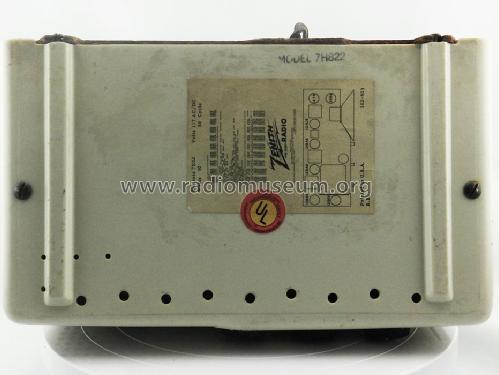

• Model: 7H822 Ch= 7E02 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 7 x 6.75 inch / 305 x 178 x 171 mm

• Notes
• new FM band; Selenium Rectifier

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (493-25 Set 55 Folder 25)
