• Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 67972
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org

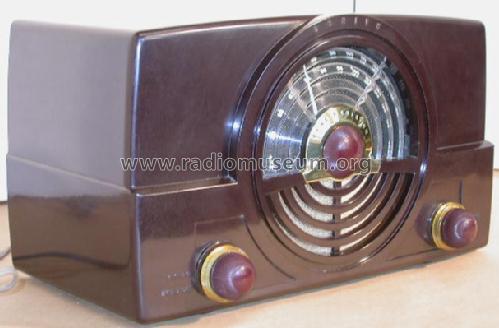

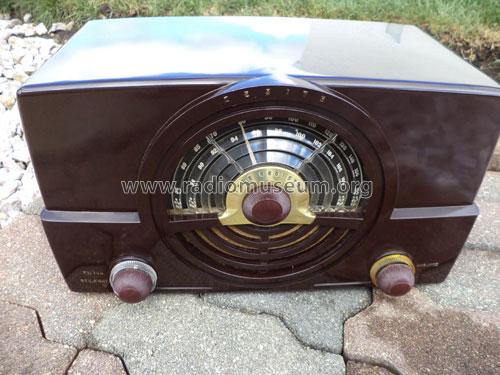

  • Model: 7H920 Ch= 7F01 - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 15 x 8.5 x 7.5 inch / 381 x 216 x 191 mm
  • Notes
  • Selenium Rectifier
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
